Description

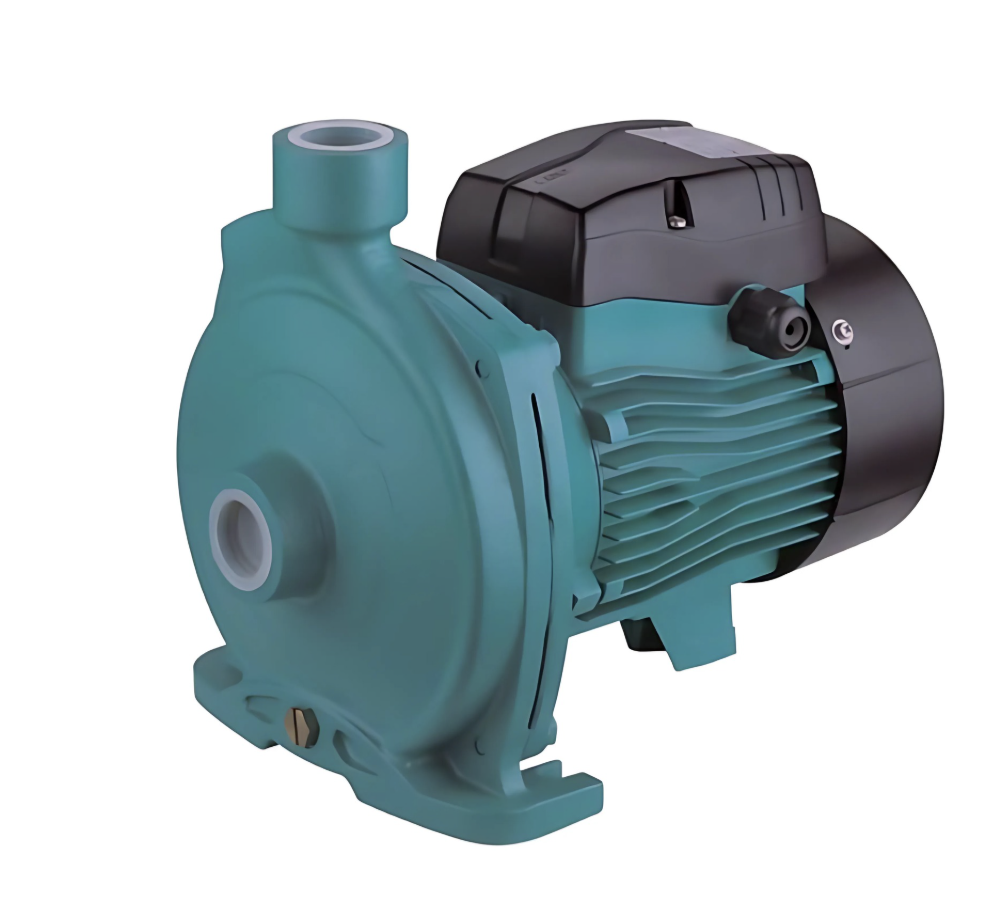

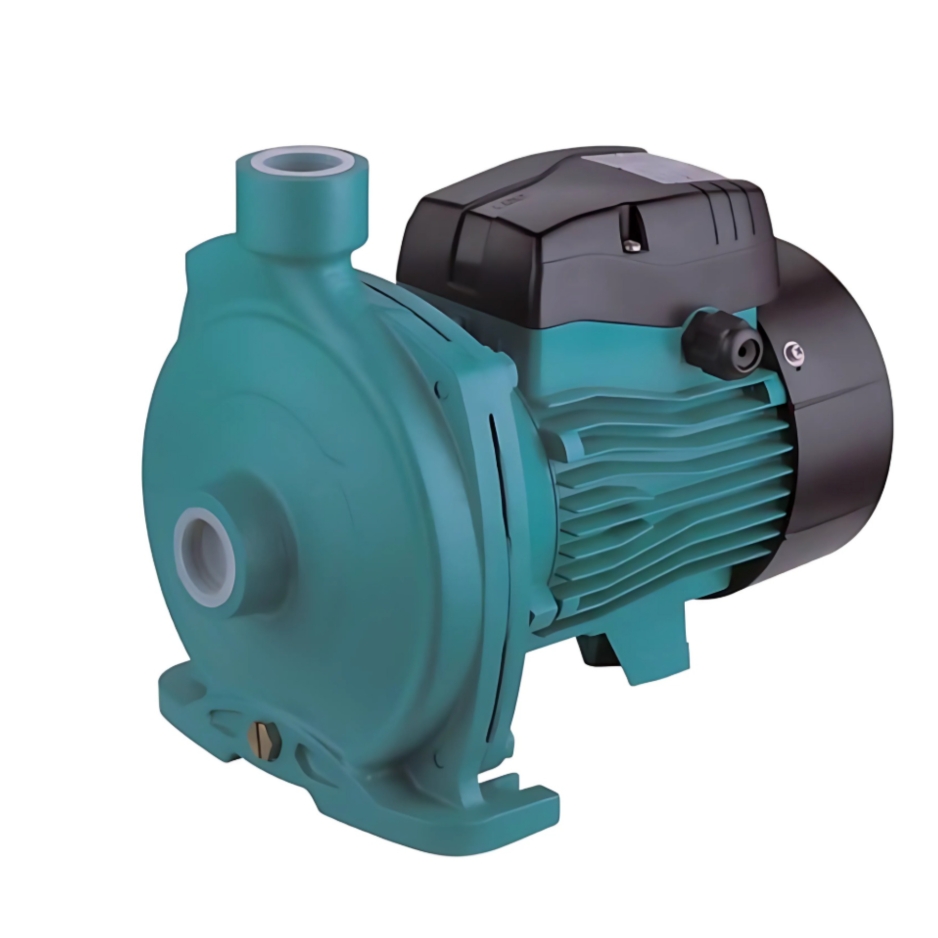

The LEO ACM37 Centrifugal Pump offers a reliable and efficient solution for various water transfer and pressure boosting needs. This 0.37kW (0.5HP) single-phase pump is specifically designed for handling clean water and non-corrosive liquids. Known for its innovative design and use of top-grade materials, the ACM37 provides a dependable entry-level pumping solution for residential and light industrial environments.

Features

• Compact & Versatile Power: Delivers 0.37kW of power, making it highly efficient for everyday domestic tasks and small-scale irrigation.

• IPX4 Waterproof Protection: Engineered for resilience, the IPX4 rating allows for outdoor installation without the strict requirement for an additional protective cover.

• Premium Construction: Features a robust HT200 pump body, a high-quality Brass impeller, and a durable Carbon/Ceramic mechanical seal for an extended service life.

• Reliable Motor Housing: Built with a ZL102 casing and a PC terminal board to ensure electrical components remain secure and protected.

• Continuous Efficiency: Designed to maintain consistent flow for long-distance water transfer and rainwater harvesting systems.

What Does It Do?

The LEO ACM37 is engineered to move, circulate, and pressurize clean water. It is the ideal "workhorse" for drawing water from storage tanks or shallow wells (Max Suction: 8m) to supply garden sprinklers, fill header tanks, or support heating and cooling circulation systems. Its balanced design ensures smooth operation with low vibration, typical of high-quality LEO engineering.

Maintenance

• Dry Run Prevention: To protect the mechanical seal, ensure the pump is always primed with water before operation.

• Temperature Limits: For optimal performance and seal life, ensure the liquid and ambient temperatures do not exceed +40°C.

• Visual Inspection: Periodically check the terminal box and seal ring for any signs of wear or moisture ingress.

Good to Know (Important)

• Outdoor Ready: The IPX4 rating provides peace of mind for installations where the pump may be exposed to splashing water or light rain.

• Materials Matter: The use of a Brass impeller is a significant quality upgrade over plastic alternatives, offering better resistance to wear and heat.

• Space Saving: With a compact footprint (270mm length), this pump fits easily into tight utility spaces or small pump housings.

What’s in the Box?

• 1 x LEO ACM37 Centrifugal Pump (0.37 kW)

• 1 x Terminal Box with PC Board (Pre-assembled)

• 1 x Technical User Manual

Dimensions & Weight

• Size: 270mm (L) × 157mm (W) × 216mm (H)

• Weight: 8.4 kg
