The Leo ACm110 Complete Centrifugal Pump with Controller is a high-power 1.1kW (1.5HP) solution engineered for reliable and versatile water handling. This integrated unit combines a heavy-duty centrifugal pump with an intelligent automatic pressure controller, ensuring a constant and pressurized water supply without manual intervention. It is a robust workhorse designed to meet the high-demand requirements of modern residential, commercial, and light industrial systems.

Features

• Automatic Pressure Control: The system starts and stops the pump automatically based on water demand, maintaining system pressure and preventing frequent cycling.

• High-Output Performance: The 1.1kW motor provides a significant power boost, ideal for high-rise buildings, fire-fighting support, and large-scale irrigation.

• Intelligent Protection (IP65): The controller is highly resistant to dust and moisture, ensuring safe operation of the internal electronics.

• Durable Motor Design: Rated with Class F insulation and IPX4 protection, the pump is built to operate reliably in ambient temperatures up to +40°C.

• Wide Application Range: From urban water distribution to HVAC circulation, this pump handles clean water and non-corrosive liquids with ease.

What Does It Do?

This complete system functions as an "on-demand" pressure station. The controller continuously monitors the plumbing line; as soon as a tap or valve is opened and pressure drops to the 1.5 bar starting point, the pump activates to deliver high-flow, high-pressure water. It eliminates the frustration of low pressure in multi-story buildings and ensures irrigation sprinklers operate at their peak design specifications.

Maintenance

• Seal Protection: Ensure the pump always has a supply of water; running the unit dry can damage the mechanical seals.

• Ventilation: Install the pump in a covered, dry area with sufficient airflow to allow the motor to cool during continuous operation.

• Check Prime: Periodically ensure the system is properly primed, especially if drawing from an underground source, to maintain efficiency.

Good to Know (Important)

• High-Flow Intake: Features a larger 1¼" inlet to ensure the pump receives sufficient water volume for its high-output 1.5HP motor.

• Temperature Versatility: Capable of handling liquid temperatures up to 60°C, making it suitable for both cold and hot water circulation duties.

• Long-Distance Ready: The power of the ACm110 makes it an excellent choice for transferring water over long distances or up several stories.

What’s in the Box?

• 1 x Leo ACm110 Centrifugal Pump (1.1 kW)

• 1 x Automatic Electronic Pressure Controller

• 1 x Installation and Technical Guide

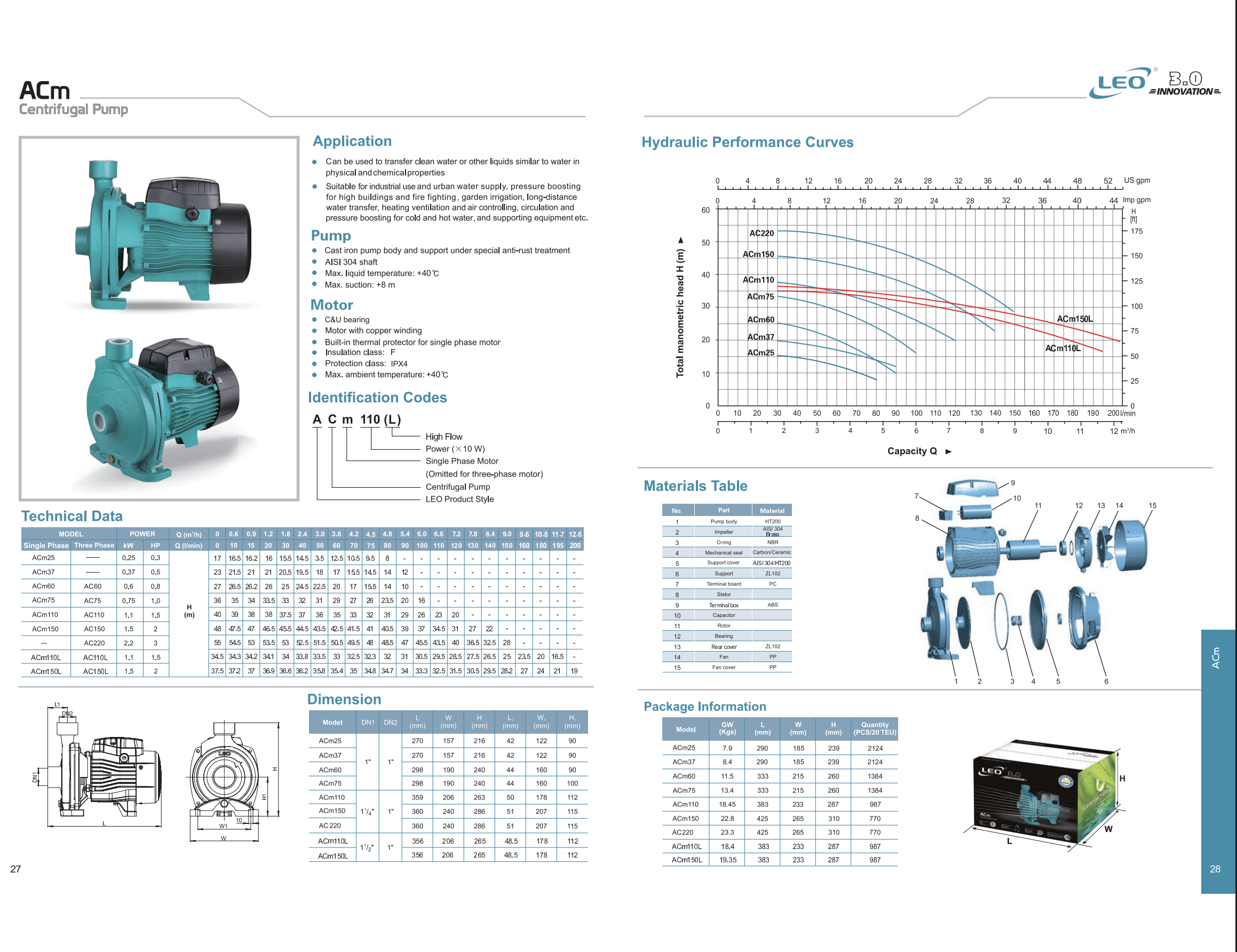

Technical Parameters

• Max Ambient Temp: +40°C

• Max Liquid Temp: +60°C

• Max Current: 10A
